Questioning the standardized cavitation erosion test

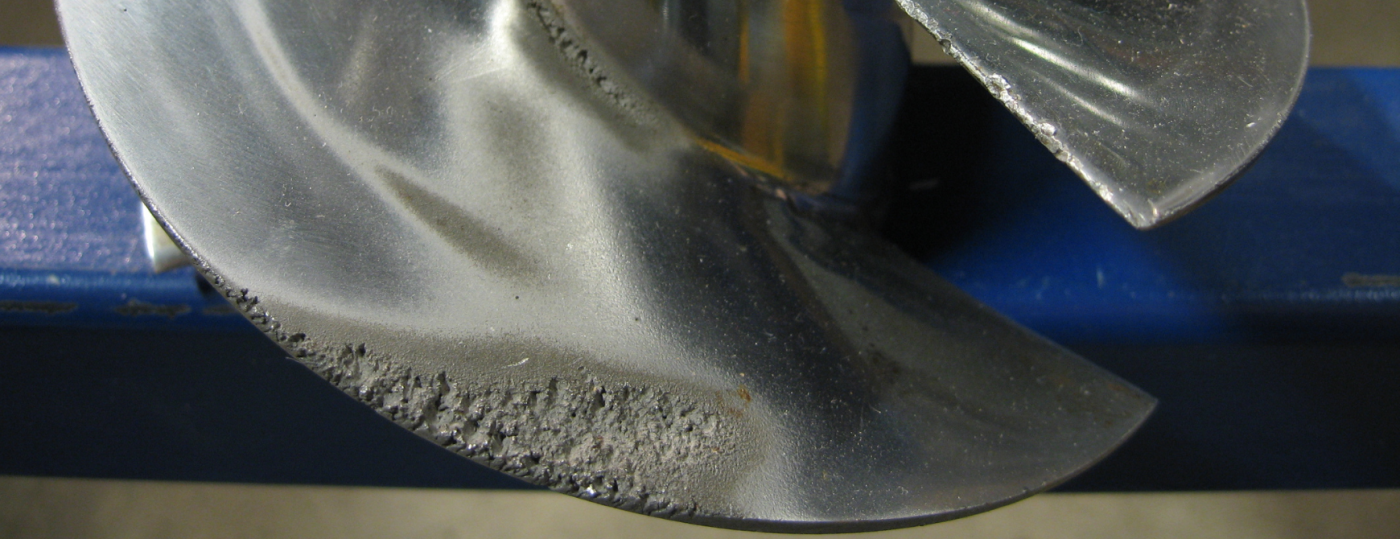

Erik Axdahl/Wikimedia
Date of publication:
Mechanical engineers often rely on standardized procedures when testing materials. Since the standardized cavitation erosion test ASTM G32 has repeatedly been shown to be inaccurate in the past, researchers at the Laboratory for Water and Turbine Machines (LVTS) at the Faculty of Mechanical Engineering, University of Ljubljana, have closely examined it and uncovered its shortcomings.
Cavitation, vaporization and the resulting rapid collapse of bubbles due to a change in local pressure, can lead to cavitation erosion, which is one of the most serious problems faced by engineers of hydraulic machines (turbines, pumps, propellers, ...). When testing materials, engineers typically rely on standardized procedures. The most common is the ASTM G32 vibratory test. However, it has been repeatedly shown in the past that the predictions of this test do not match the damage that occurs during the operation of the machines. The reason has remained unknown until now.
When performing a standardized measurement, a material sample is exposed to cavitation. This is generated by an ultrasonic probe, which must be positioned 0.5 mm away from the sample. In the study, the researchers monitored cavitation in the gap between the probe and the sample using a camera that records more than a million images per second. They showed that bubbles in a thin gap (<1 mm) have a two-dimensional (cylindrical) shape and behave differently than those in larger gaps. As a result, their collapse, radiated shock wave and erosion effect are less aggressive.
The study provides the first evidence that the dynamics of bubbles in the thin gap prescribed by the standard is significantly different from that of free bubbles in machines. This calls into question the validity of the ASTM G32 test. The researchers published their findings in a renowned journal Ultrasonics Sonochemistry (IF: 8,7).
What is cavitation?
Cavitation is a hydrodynamic phenomenon where bubbles form in a liquid. This usually happens when the liquid is exposed to rapid pressure changes. The bubbles appear in areas where low pressure occurs. If the local pressure rises again, the bubbles implode, generating powerful shock waves that can cause damage to machinery parts.
